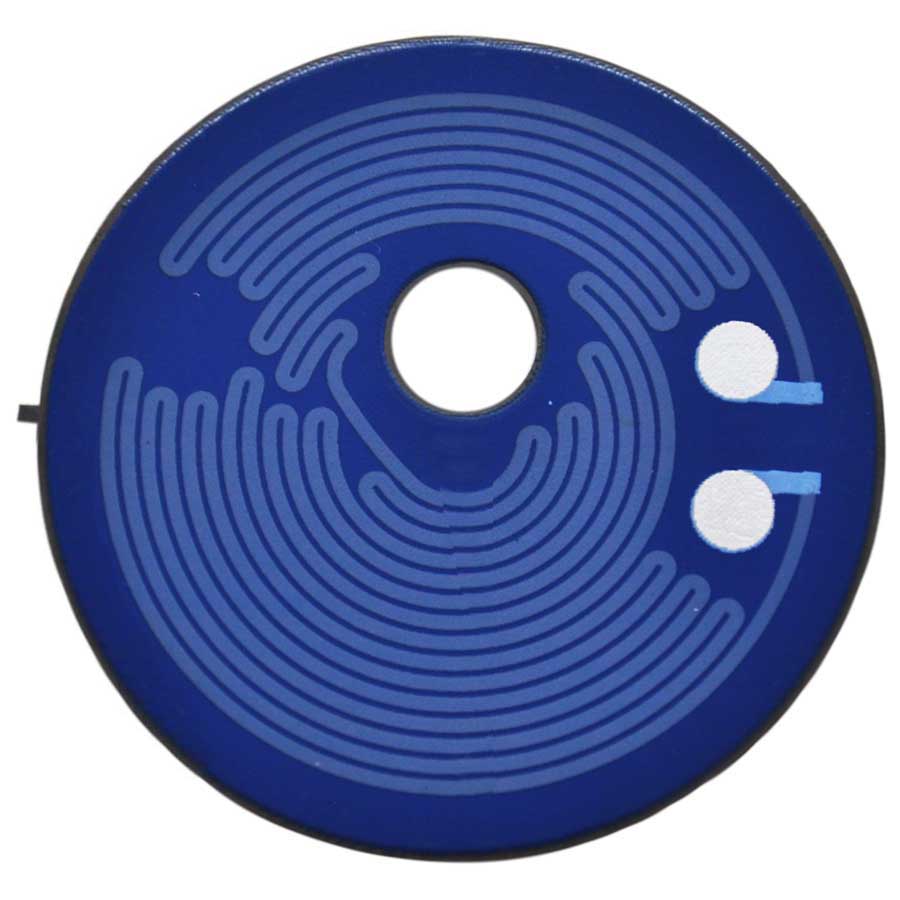

5V 10W Thick Film Heater From China

The Rare-Earth Metal Thick Film Heater is one of today's most innovation and forward-looking solution for electric heating field.
The thick film heater is comprised of screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900℃.
It can heat water insantly due to the high power (6000W maximum for single heater).
For applications where space is limited, thick film heater is very advantageous to traditional ones for its compact size.

Specifications
Maximum operating temperature: 600°C
Maximum power density: 50 w/cm²
Voltage: 5-380V
Power: 100-3000 (W)
Thickness: 1.5-3mm

Company advantage
1. Expert in providing heating solutions for more than 20 years in industry.
2. ISO9001, IATF16949, CE, UL, 3C and other quality certifications make cooperation more assured.
3. The experienced R&D team can provide customized heating solutions according to customer needs.
4. Equipped with the production workshop, it provides a dust-free and static-free environment with controllable temperature and humidity for thick film manufacturing.
