Silicone Rubber Heating Blanket

Silicone heater is beneficial to take out liquid and coagulum from drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.

Parameters

1. size : 20*25mm~500mm*5000mm, thickness1.5mm(can be customized)

2. resistance wire : nickel 80% wound wire or nickel 80% foils(thickness 0.05mm~0.10mm)inside

3. shape : variety of shapes, can be customized

4. power design : 3~5w/cm2,fast heating

5. working temp. : -60~200 degree

6. wire length : Standard 200mm

Benefits

Silicone Rubber Heaters can offer a high watt density while maintaining flexibility. Heat can be delivered where it is most needed.
These Silicone Heaters improve heat transfer; speed warm ups, and reduces wattage requirements. Because very little material separates the element from the part, heat transfer is fast and efficient.
Fiberglass-reinforced silicone rubber gives the heater dimensional strength without sacrificing flexibility. The heater construction creates a very thin heater allowing it to fit applications where space is limited. Silicone Rubber Heaters provide steady performance and are able to provide more wattage than polyimide electric heaters.

Specifications

Power Source: Electric
Voltage: 12,24-480V
Power : ≤ 3W/cm2
Maximum size: 500mm*1000mm
Thickness:1-1.5mm
Recommended working temperature:≤200℃
Color: Brown
Warranty: 1 Year
Material: silicone rubber with etching film
Insulation material: silicone rubber
Insulation resistance: 1000V,≥100MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need

Accessories optional

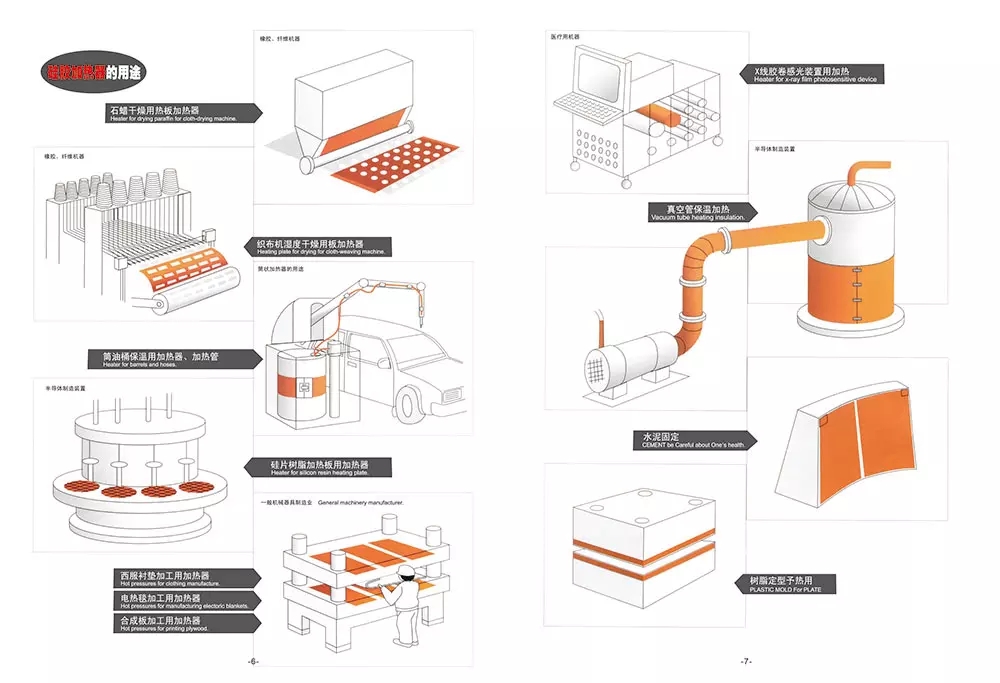

Application

Hotlong, (Jiangyin Huilong Electric Heating Appliance Co., Ltd.) based in China’s famous Yangtze River Delta industrial area, establishes 3 manufactories, 3 research and development centers and the worldwide sales network since 2002, who aims to provide the best quality and utmost integrity you deserve.

Hotlong not only focuses on product research and development, but also independently develops modern management system, realizing the integrated management mode from production to sale. We believe the efficient management mode is the foundation of the long-term development of enterprise.

Our products have many certifications which including UL, CE, I A T F 1 6 9 4 9, I S O 1 8 0 0 1 and I S O 9 0 0 1.

As the efforts of all Hotlong staffs, we are so proud and honor to achieve over 30 patents.

The mission of Hotlong is to help you we serve become more successful in your business. We aim to provide you the best solutions and ensure you get the best service.

We are driven to serve your company not as just a key supplier but as a valued partner.

Hotlong-Flexible thinking creates the future! Looking forward to cooperating with you!
