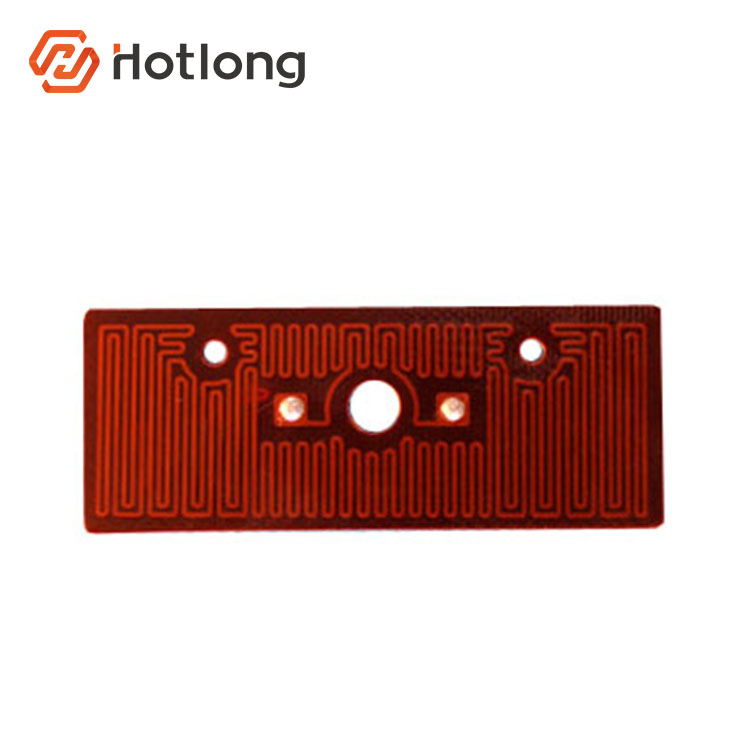

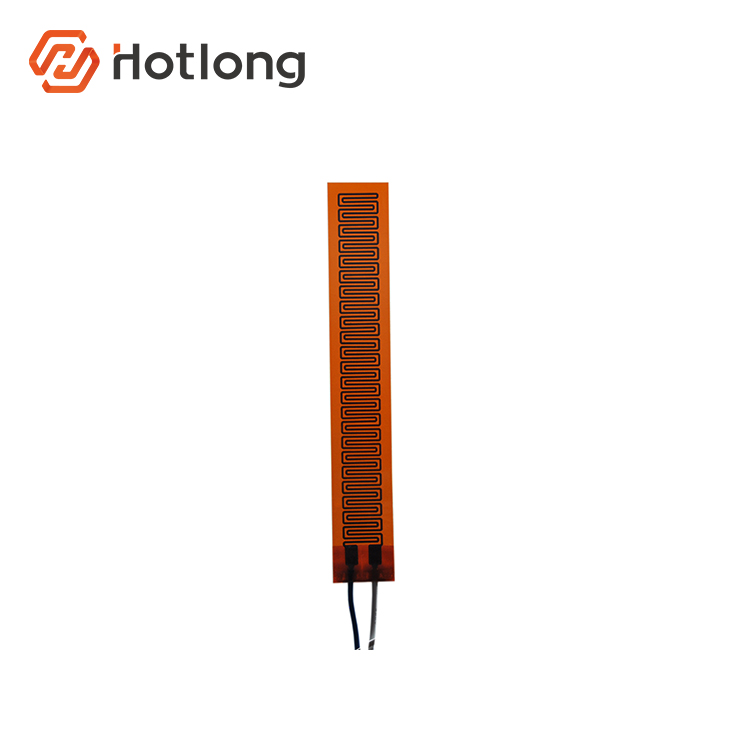

300*300mm polyimide film heater 48v offers a high degree of
resistance to chemicals, and has excellent outgasing properties in
high vacuum environments.
Polyimide is an organic polymer with very high dielectric
capability and thin profile, while providing superior resistance to
most solvents, oils, and radiation. In connection with these
features, polyimide film heater is very ideal for applications with
space and weight limitation, or where the heater will be exposed to
chemical or oil. polyimide film Foil Heater also allows easy visual inspection on
the internal structures. Pressure-sensitive adhesive (PSA) backing
surface is standard, but special adhesives or mounting holes can be
customized as customer requirement.
Introduction
Flexible polyimide film heaters in need of various shapes, sizes
and power are available. this type of heater is very thin (the
thickness is 0.25mm top) and able to bent arbitrarily, which allows
close thermal contact with the heated subject to reach maximum
heating efficiency.
Application
1. Medical equipment such as blood analyzers and test tube heaters
2.Computer peripherals such as laser printers
3.Curing of plastic laminates
4.Photo processing equipment
5.Semiconductor processing equipment
6.Thermal transfer equipment
7.Heat various vessels and objects including...
◊ Heat resistant temp.
continuous use temp.
200°C(customized)
max. temp.
250°C(customized)
◊ Power characteristics
insulation resistance
1000MΩ or over DC500V(customized)
withstand voltage
1500V/1min(customized)
◊ Size
max.
customized
min.
customized
thickness
customized
Polyimide film heater is a translucent or transparent metallic
electric heating film, resistive circuit made of special alloy is
covered PI films with excellent temperature tolerance and
insulation. Compared with filiform electrothermal structure, PI
heaters provides more uniform thermal field, shorter heating period
and shifter response, lower power load but longer service life.PSA
or Epoxy resin are optional for installation.
