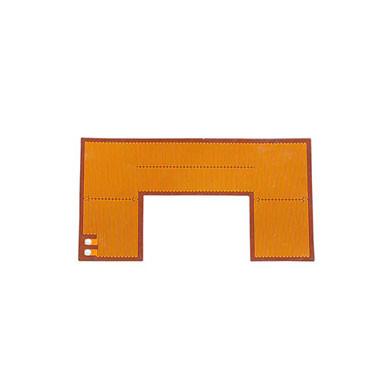

Thickness 0.3mm 12V 200W Clear Amber Flexible Polyimide Heater

Polyimide Thermofoil Heaters

Benefits

Flexible heating film is a clear amber colored polyimide film. The
process for making flexible heating film is similar to that of
Etched Foil Silicone heaters. It is a high-temperature flexible
heating element with excellent dielectric properties capable of
operating environments between -185 degree celsius to 200 degree
Celsius Customize 12V,24V,36V 3D printer flexible heating film with
CE certification,and we usually say it is polyimide heaters. This
is is very thin,the thickness is about 0.3mm,it is very light,so it
is widely used on 3D printer.the normal size for 3D printer are
follow, 1,200x200mm,12v,200w 2,260x290mm,12v,145w
3,200x250mm,12v,90w and so on. any size,any shape can be customize.
please contact with us. NOTE: we can custom according to your
voltage, size, power and so on.

Features and Benefits
Excellent physical and electrical properties: results in thermal stability over a wide temperature range.
Transparent polyimide material: allows inspection of internal details.
Resistance of radiation and fungus: can be used in a wide range of applications.
Thickness 0.3mm 12V 200W Clear Amber Flexible Polyimide Heater

Specifications
Power Source: Electric
Voltage: 12-480V
Power : ≤ 3W/cm2
Maximum size: 500mm*1000mm
Thickness:0.15-0.5mm
Recommended working temperature:≤ 180℃
Color: Brown
Warranty: 1 Year
Material: PI/polyimide film with etching film
Insulation material: polyimide film
Insulation resistance: 1000V,≥100MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need

Standard type	size(mm)	voltage	power	power density
HL-00368(A)-E-O	50*200	220V	50W	0.5W/CM2
HL-00368(B)-E-O	50*300	220V	75W	0.5W/CM2
HL-00368(C)-E-O	100*100	220V	50W	0.5W/CM2
HL-00368(D-E-O	100*200	220V	100W	0.5W/CM2
HL-00368(E)-E-O	100*300	220V	150W	0.5W/CM2
HL-00368(F)-E-O	200*200	220V	200W	0.5W/CM2
HL-00368(G-E-O	200*300	220V	300W	0.5W/CM2

Accessories optional

Name	Model	Specifications
Leading line	PTFE wire UL1332	300V,26AWG-10AWG
	PTFE wire UL1330	600V,26AWG-10AWG
	PI line	300V,30AWG-20AWG
	Silicone rubber line	300V,0.5mm2-2.5mm2
	Glass fiber line	300V,0.5mm2-4mm2
3M glue	468/467	working temperature ≤ 149℃
	966/9079	working temperature ≤ 179℃
	9888T	working temperature ≤ 119℃
Controller	OT1	0-200°C JPt 100Ω sensor
	OT3	0-300°C PID controller
	OT4. OT5	100ºC
	EGO	0-40ºC 30-110ºC 60-200ºC
	Thermo	50ºC 70ºC 100ºC 120ºC 150ºC

Application
Medical applications that require a clean, sterile environment
Laboratory research
Semiconductor processing equipment
Optical equipment
LCD displays
Computer equipment
Photographic equipment
