50*300mm 75W Brown Etched Metal Polyimide Foil Heater

Product Categories

Jiangyin Huilong Electric Heating Appliance Co., Ltd

Contact Now

50*300mm 75W Brown Etched Metal Polyimide Foil Heater

Ask Lasest Price
Brand Name :	Hotlong
Certification :	CE,ISO9001
Price :	consultative
Delivery Time :	7-10

Add to Cart

Product Details
Company Profile

50*300mm 75W Brown Etched Metal Polyimide Foil Heater

Polyimide (polyimide film) film heaters

Polyimide (polyimide film) film is an organic material with very high dielectric capability, thin flexible profile and low thermal mass, while providing superior resistance to most solvents, acids, and radiation. Being transparent, Polyimide (polyimide film) heater allows easy visual inspection of the internal foil circuit structure.

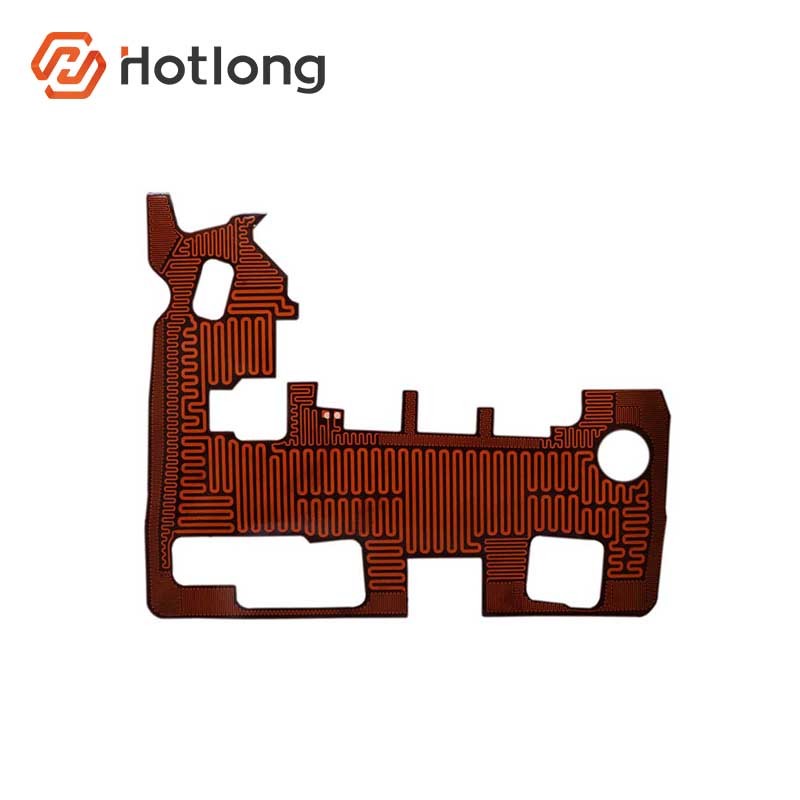

50*300mm 75W Brown Etched Metal Polyimide Foil Heater

Foil Element

Polyimide (polyimide film) heaters make use of very thin (e.g. 50μm) etched metal (usually nickel based alloy) foil as resistance element. The resistance pattern to be etched is designed in CAD and transferred to the foil, which is then processed through acid spray to produce the desired resistance pattern.

Features and Benefits
Excellent physical and electrical properties: results in thermal stability over a wide temperature range.
Transparent polyimide material: allows inspection of internal details.
Resistance of radiation and fungus: can be used in a wide range of applications.

Specifications

Power Source: Electric

Voltage: 12-480V

Power : ≤ 3W/cm2

Maximum size: 500mm*1000mm

Thickness:0.15-0.5mm

Recommended working temperature:≤ 180℃

Color: Brown

Warranty: 1 Year

Material: PI/polyimide film with etching film

Insulation material: polyimide film

Insulation resistance: 1000V,≥100MΩ

Certification: ISO9001, CE, Rohs, UL

Application: as customer’s need

Standard type	size(mm)	voltage	power	power density
HL-00368(A)-E-O	50*200	220V	50W	0.5W/CM2
HL-00368(B)-E-O	50*300	220V	75W	0.5W/CM2
HL-00368(C)-E-O	100*100	220V	50W	0.5W/CM2
HL-00368(D-E-O	100*200	220V	100W	0.5W/CM2
HL-00368(E)-E-O	100*300	220V	150W	0.5W/CM2
HL-00368(F)-E-O	200*200	220V	200W	0.5W/CM2
HL-00368(G-E-O	200*300	220V	300W	0.5W/CM2

Accessories optional

Name	Model	Specifications
Leading line	PTFE wire UL1332	300V,26AWG-10AWG
	PTFE wire UL1330	600V,26AWG-10AWG
	PI line	300V,30AWG-20AWG
	Silicone rubber line	300V,0.5mm2-2.5mm2
	Glass fiber line	300V,0.5mm2-4mm2
3M glue	468/467	working temperature ≤ 149℃
	966/9079	working temperature ≤ 179℃
	9888T	working temperature ≤ 119℃
Controller	OT1	0-200°C JPt 100Ω sensor
	OT3	0-300°C PID controller
	OT4. OT5	100ºC
	EGO	0-40ºC 30-110ºC 60-200ºC
	Thermo	50ºC 70ºC 100ºC 120ºC 150ºC

Application

Medical applications that require a clean, sterile environment

Laboratory research
Semiconductor processing equipment
Optical equipment
LCD displays
Computer equipment
Photographic equipment
