Benefits

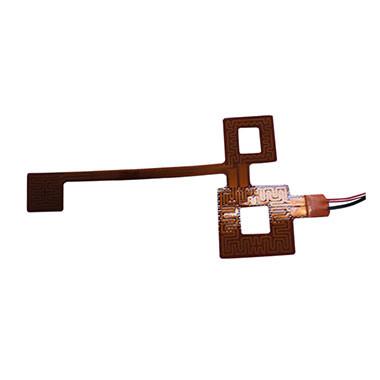

polyimide film Foil Heater are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.

Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, polyimide film heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.

polyimide film Foil Heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.

Features and Benefits
Excellent physical and electrical properties: results in thermal stability over a wide temperature range.
Transparent polyimide material: allows inspection of internal details.
Resistance of radiation and fungus: can be used in a wide range of applications.


Specifications
Power Source: Electric
Voltage: 12-480V
Power : ≤ 3W/cm2
Maximum size: 500mm*1000mm
Thickness:0.15-0.5mm
Recommended working temperature:≤ 180℃
Color: Brown
Warranty: 1 Year
Material: PI/polyimide film with etching film
Insulation material: polyimide film
Insulation resistance: 1000V,≥100MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need

Accessories optional

Application
Medical applications that require a clean, sterile environment
Laboratory research
Semiconductor processing equipment
Optical equipment
LCD displays
Computer equipment
Photographic equipment
