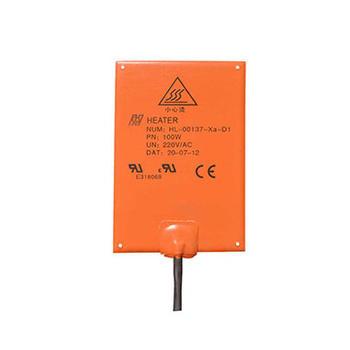

Switch Cabinet Heater
Advantage:
1. Silicone Runner Heating Pad/Sheet has advantages of
thinness,lightness,sticky and flexibility.
2. It can improve heat transfer,accelerate warming and decrease
power under the process of operation.
3. They are heating fast and thermal conversion efficiency high.
Main Application:
Thermal transfer equipment;
Prevent condensation in motors or instrument cabinets;
Freeze or condensation prevention in housings containing electronis
equipment,for example:traffic signal boxes,automatic teller
machines,temperature control panels,gas or liquid control valve
housings;
Composite bonding processes
Airplane engine heaters and aerospace industry
Drums and other vessels and viscosity control and asphalt storage
Medical equipment such as blood analyzers,medical respirators,tes
tube heaters,etc;
Curing of plastic laminates
Computer peripherals such as laser printers,duplicating machines
Specifications
Power Source: Electric
Voltage: 12-480V
Maximum size: 500mm*1000mm
Recommended working temperature:≤200℃
Color: Brown
Warranty: 1 Year
Material: silicone rubber with etching film
Insulation material: silicone rubber
Insulation resistance: ≥50MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need
Normal size:
| Model | RDB-50 | RDB-70 | RDB-100 | RDB-150 | RDB-250 |
| Size(mm) | 90x150 | 100x210 | 120x185 | 150x200 | 150x300 |
| Power | 50W | 70W | 100W | 150W | 250W |
Accessories optional:
| Name | Model | Specifications |
| Leading line | PTFE wire UL1332 | 300V,26AWG-10AWG |
| PTFE wire UL1330 | 600V,26AWG-10AWG |
| PI line | 300V,30AWG-20AWG |
| Silicone rubber line | 300V,0.5mm2-2.5mm2 |
| Glass fiber line | 300V,0.5mm2-4mm2 |
| 3M glue | 468/467 | working temperature ≤ 149℃ |
| 966/9079 | working temperature ≤ 179℃ |
| 9888T | working temperature ≤ 119℃ |
| Controller | OT1 | 0-200°C JPt 100Ω sensor |
| OT3 | 0-300°C PID controller |
| OT4. OT5 | 100ºC |
| EGO | 0-40ºC 30-110ºC 60-200ºC |
| Thermo | 50ºC 70ºC 100ºC 120ºC 150ºC |
