Switch Cabinet Heater
Silicone Heating Plates beneficial to take out liquid and coagulum
from drums easily by heating, such as adhesive, oil, asphalt,
paint, paraffin wax, oil and various resin raw materials in the
drum. It can make viscosity of materials descending and uniform by
heating the drum, and reduce the power of pump. Therefore, the
heater does not be restricted by seasons, and can be used
throughout the year.
Benefits

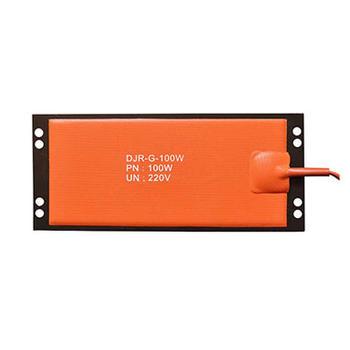

Cabinet heater can be used to the heating and heat preservation of
all kinds od cabinets and boxes, such as cubicle
switchboard,communication cabinet, linghting box, antiflocculation
box , computer, etctucture.
For this type heater, we can produce mounting holes for easy
install and there is aluminum plate on the back of the heater. We
have normal size(RDB type) and also we can produce as custom made.
Specifications
Power Source: Electric
Voltage: 12-480V
Maximum size: 500mm*1000mm
Recommended working temperature:≤200℃
Color: Brown
Warranty: 1 Year
Material: silicone rubber with etching film
Insulation material: silicone rubber
Insulation resistance: ≥50MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need
Normal size:
| Model | RDB-50 | RDB-70 | RDB-100 | RDB-150 | RDB-250 |
| Size(mm) | 90x150 | 100x210 | 120x185 | 150x200 | 150x300 |
| Power | 50W | 70W | 100W | 150W | 250W |
Accessories optional:
| Name | Model | Specifications |
| Leading line | PTFE wire UL1332 | 300V,26AWG-10AWG |
| PTFE wire UL1330 | 600V,26AWG-10AWG |
| PI line | 300V,30AWG-20AWG |
| Silicone rubber line | 300V,0.5mm2-2.5mm2 |
| Glass fiber line | 300V,0.5mm2-4mm2 |
| 3M glue | 468/467 | working temperature ≤ 149℃ |
| 966/9079 | working temperature ≤ 179℃ |
| 9888T | working temperature ≤ 119℃ |
| Controller | OT1 | 0-200°C JPt 100Ω sensor |
| OT3 | 0-300°C PID controller |
| OT4. OT5 | 100ºC |
| EGO | 0-40ºC 30-110ºC 60-200ºC |
| Thermo | 50ºC 70ºC 100ºC 120ºC 150ºC |
