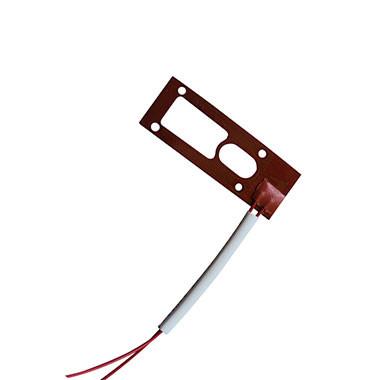

Polyimide Heater
Benefits
polyimide film is a polyimide film used in conjunction with etched
foil circuits to produce very thin flexible heaters. It has
excellent dielectric qualities to provide 5000 volts dielectric per
0.001inch (0.025mm) thickness.
polyimide film Heater can be made in any shapes, sizes and
wattages. The working volts is from 1V to 240V. According to the
different heating requirement, we can design different heating
loop. So it has flexible designation.
Because of the light heavy and heating evenly, it is using in many
ways, such as Satellites, aerospace equipment, mobile devices.
Features and Benefits
Excellent physical and electrical properties: results in thermal
stability over a wide temperature range.
Transparent polyimide material: allows inspection of internal
details.
Resistance of radiation and fungus: can be used in a wide range of
applications.
Specifications
Power Source: Electric
Voltage: 12-480V
Power : ≤ 3W/cm2
Maximum size: 500mm*1000mm
Thickness:0.15-0.5mm
Recommended working temperature:≤ 180℃
Color: Brown
Warranty: 1 Year
Material: PI/polyimide film with etching film
Insulation material: polyimide film
Insulation resistance: 1000V,≥100MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need
| Standard type | size(mm) | voltage | power | power density |
| HL-00368(A)-E-O | 50*200 | 220V | 50W | 0.5W/CM2 |
| HL-00368(B)-E-O | 50*300 | 220V | 75W | 0.5W/CM2 |
| HL-00368(C)-E-O | 100*100 | 220V | 50W | 0.5W/CM2 |
| HL-00368(D-E-O | 100*200 | 220V | 100W | 0.5W/CM2 |
| HL-00368(E)-E-O | 100*300 | 220V | 150W | 0.5W/CM2 |
| HL-00368(F)-E-O | 200*200 | 220V | 200W | 0.5W/CM2 |
| HL-00368(G-E-O | 200*300 | 220V | 300W | 0.5W/CM2 |
Accessories optional
| Name | Model | Specifications |
| Leading line | PTFE wire UL1332 | 300V,26AWG-10AWG |
| PTFE wire UL1330 | 600V,26AWG-10AWG |
| PI line | 300V,30AWG-20AWG |
| Silicone rubber line | 300V,0.5mm2-2.5mm2 |
| Glass fiber line | 300V,0.5mm2-4mm2 |
| 3M glue | 468/467 | working temperature ≤ 149℃ |
| 966/9079 | working temperature ≤ 179℃ |
| 9888T | working temperature ≤ 119℃ |
| Controller | OT1 | 0-200°C JPt 100Ω sensor |
| OT3 | 0-300°C PID controller |
| OT4. OT5 | 100ºC |
| EGO | 0-40ºC 30-110ºC 60-200ºC |
| Thermo | 50ºC 70ºC 100ºC 120ºC 150ºC |
Application
Medical applications that require a clean, sterile environment
Laboratory research
Semiconductor processing equipment
Optical equipment
LCD displays
Computer equipment
Photographic equipment
FAQ
1. How much for the silicone heater?
The price depends on the size.
2. Why the price is so low?
You are ordering directly from the factory.
3.What type of payment do you have available?
We accept T/T,as sample order,the Paypal,Western union,Money gram
and Aliexpress is available.
4.Could I get some samples?
Yes,of course.
5.What is the lead time?
Sample is only for 1-3 days,if the mass prodction,we can discuss on
your requirement.
6.Which certification does your factory have?
We have CE,ISO,ROHS,16949 certification.
