flexible polyimide film heating elements

Our heaters are made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.

Size(mm)	Voltage(V)	Wattage(W)	Accessories
150*150	12V	100W	Adhesive, thermistor
160*160	12V	90W	Adhesive, thermistor
200*200	12V/24V	150W	Adhesive, thermistor
300*300	12V/24V	270W	Adhesive, thermistor
340*370	24V	250W	Adhesive, thermistor
Different size of silicone heater bed ,if you can't find suitable size ,please let me know. Also can supply 400x400mm ,500x500mm ,600x600mm big size heater bed.

Dimension	Dimensions on request
Thickness	1.5mm(standard) 4.5mm/6mm/7.5mm
Voltage	Any voltage on request
Output	Up to 5KW/M2
Tolerance	±10% on resistance
Min exposure temperature	-60°C
Max surface temperature	200°C

Application

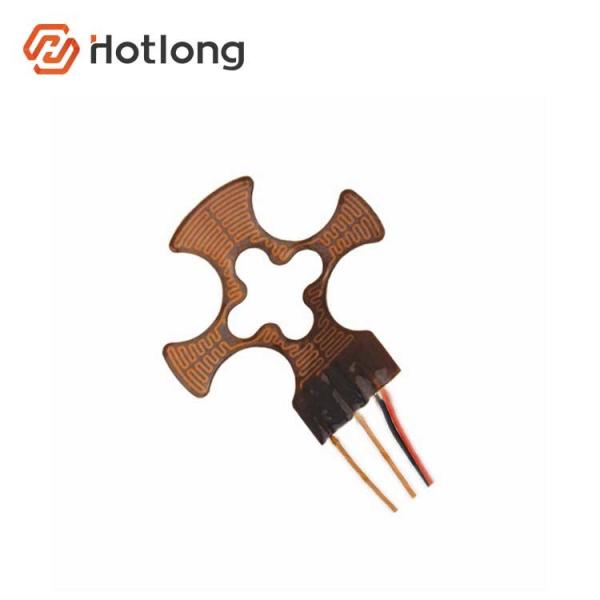

Flexible polyimide film heating elements

Features:

1. Light-weight, thin thickness offer faster warm-ups and quicker response.

2. Very flexible offer thermal contact with the Part for maximum heating efficiency.

3. Offered in a virtually unlimited range of shapes, sizes and wattages.

4. Their flat etched foil elements cover more area and transfer heat more efficiently than wire wound designs.

5. On request, temperature distribute in the surface of the heater.

6. Small thermal lag, precision temperature control and fast response.

7. polyimide film insulation is dimensionally stable, self-extinguishing, and highly resistant to oils, chemicals, fungus, solvents and radiation.

8. Thermostats and other sensors may be integ rated into the design for accurate control and temperature tracing.

9. PSA is available as an option on heater rated at 1W/cm2 and 2W/cm2. The heater can be mechanically clamped or epoxy mounted by the user.

10. Very safety, realizable and long life.

Our Services

For one year guarantee period and the wroking life of design is 50000 hours to 100000 hours.

The specifications of heater can be custom design.

We devote to solve problems and provide solutions for you on heating field.

Hotlong, (Jiangyin Huilong Electric Heating Appliance Co., Ltd.) based in China’s famous Yangtze River Delta industrial area, establishes 3 manufactories, 3 research and development centers and the worldwide sales network since 2002, who aims to provide the best quality and utmost integrity you deserve.

Hotlong not only focuses on product research and development, but also independently develops modern management system, realizing the integrated management mode from production to sale. We believe the efficient management mode is the foundation of the long-term development of enterprise.

Our products have many certifications which including UL, CE, I A T F 1 6 9 4 9, I S O 1 8 0 0 1 and I S O 9 0 0 1.

As the efforts of all Hotlong staffs, we are so proud and honor to achieve over 30 patents.

The mission of Hotlong is to help you we serve become more successful in your business. We aim to provide you the best solutions and ensure you get the best service.

We are driven to serve your company not as just a key supplier but as a valued partner.

Hotlong-Flexible thinking creates the future! Looking forward to cooperating with you!
