Features:
1. Light-weight, thin thickness offer faster warm-ups and quicker
response.
2. Very flexible offer thermal contact with the Part for maximum
heating efficiency.
3. Offered in a virtually unlimited range of shapes, sizes and
wattages.

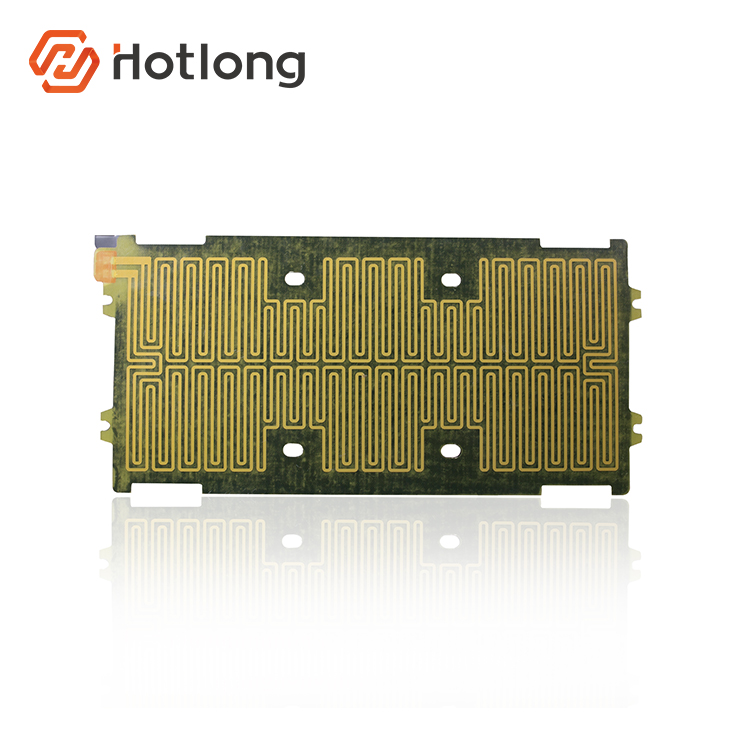

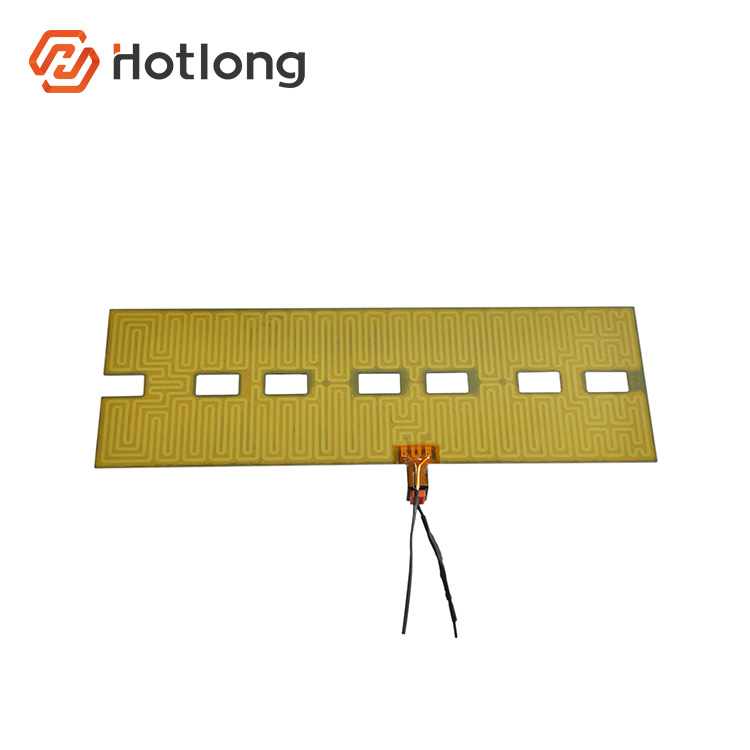

4. Their flat etched foil elements cover more area and transfer
heat more efficiently than wire wound designs.
5. On request, temperature distribute in the surface of the heater.
6. Small thermal lag, precision temperature control and fast
response.
7. polyimide film insulation is dimensionally stable,
self-extinguishing, and highly resistant to oils, chemicals,
fungus, solvents and radiation.
8. Thermostats and other sensors may be integ rated into the design
for accurate control and temperature tracing.
9. PSA is available as an option on heater rated at 1W/cm2 and
2W/cm2. The heater can be mechanically clamped or epoxy mounted by
the user.
10. Very safety, realizable and long life.
Flexible film platinum resistancePlatinum resistance PT100 or
PT1000 chip is set in PI or silicone rubber or PET insulation
layer, which protect the heating part.
Size(mm) | Voltage(V) | Wattage(W) | Accessories |
150*150 | 12V | 100W | Adhesive, thermistor |
160*160 | 12V | 90W | Adhesive, thermistor |
200*200 | 12V/24V | 150W | Adhesive, thermistor |
300*300 | 12V/24V | 270W | Adhesive, thermistor |
340*370 | 24V | 250W | Adhesive, thermistor |
Different size of silicone heater bed ,if you can't find suitable
size ,please let me know. Also can supply 400x400mm ,500x500mm
,600x600mm big size heater bed. |
Our Services
For one year guarantee period and the wroking life of design is
50000 hours to 100000 hours.
The specifications of heater can be custom design.
We devote to solve problems and provide solutions for you on
heating field.
Company Information
Company certification: ISO9001:2008, ISO 14001
Product certification: UL, CUL, CE
