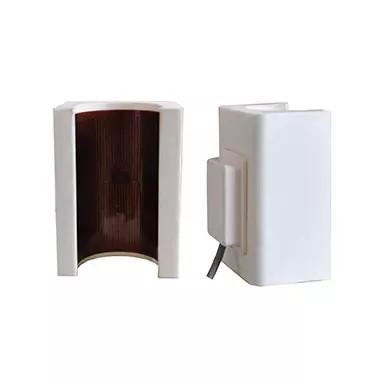

Syringe Heater

Silicone rubber heater for medical imaging device are available as wire wound or etched foil. Wire wound elements consist of the resistance wire wound on a fiberglass cord for support and stability. Etched foil heaters are made with a thin metal foil (.001”) as the resistance element. Wire wound is recommended and preferred for small to medium size quantities, medium to large sized heaters, and to produce prototypes to prove out the design parameters prior to entering into large volume production runs with etched foil.

Benefits

Heater for Medical Device:
Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes or cutouts:
- Offers excellent circuit repeatability.
- Elimination of edge loss due to compensation using distributed wattage.
- Etched foil provides options for variable watt density and complex heat patterns.
- Etching circuits is an efficient means for manufacturing in high quantities.
- Foil thickness ranges from .0005” to .004” depending on your required resistance.
- Different foil material types can be used depending on the heater resistance needed.
- Etched designs are excellent for applications requiring watt densities greater than 5 watts/in2.

Typical Application
- CPAP device
- Ultrasonic cleaner
- Medical analyzer
- Thermal Imaging system
- CT apparatus
- Injection syringe
- Other place need to heating

Specifications

Power Source: Electric
Voltage: 12-480V
Power : ≤ 3W/cm2
Maximum size: 500mm*1000mm
Thickness:1-1.5mm
Recommended working temperature:≤200℃
Color: Brown
Warranty: 1 Year
Insulation resistance: 1000V,≥100MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need

Accessories optional
